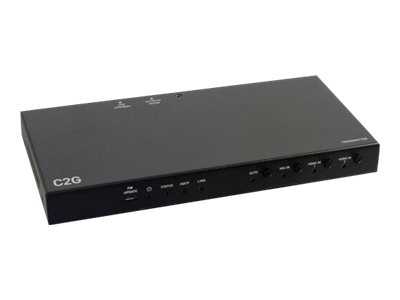

C2G Dual 4K HDMI HDBaseT + VGA, 3.5mm, and RS232 over Cat Switching Extender Box Transmitter to Ultra-Slim Box Receiver

4K 60Hz - Video/audio/serie forlænger - sender - HDBaseT, HDMI - over CAT 5e/6/6a/7 - op til 70 m
Ikke på lager pt.
Producent C2G
Varenummer C2G30027
  • log ind for pris
Bookmark and Share
  • Information
    • 4K 60 Hz video support ensures crystal-clear image quality
    • Supports a wide range of audio formats, including Dolby Atmos and DTS:X
    • Extends signals up to 70 m over CAT 5e/6/6a/7 cables
    • Multiple input and output options for versatile connectivity
    • Compliant with EMI, RoHS, and other key standards

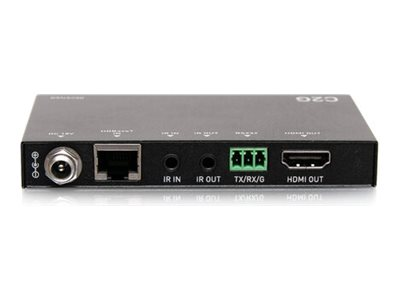

    The HDMI Ultra-Slim HDBaseT + RS232 And IR over Cat Extender Box Receiver - 4K 60 Hz allows a 4K HDMI source to be extended up to 130 feet to a 4K display using a single Cat6a Ethernet cable. This is an ideal solution where HDMI video and audio need to be extended to displays in conference rooms, classrooms, lecture halls, and many other installations needs that are far beyond the length limitations of standard HDMI cabling.

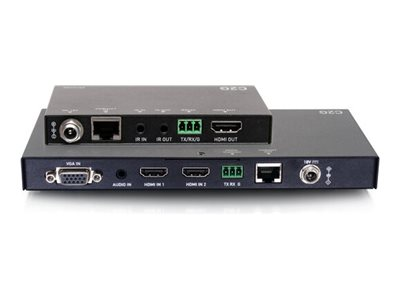

    This wall plate transmitter and box receiver accepts HDMI signals over a single network patch cable. Extend 4K HDMI up to 115 feet and 1080p up to 230 feet using a Cat5e or Cat6 cable. For longer 4K distances, extend 4K HDMI or up to 130 feet using a Cat6a cable.

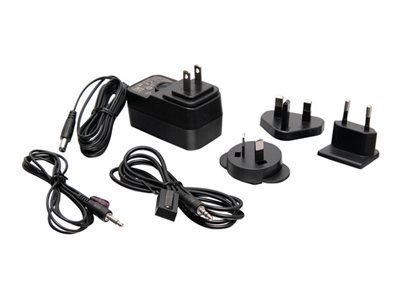

    This HDMI HDBaseT set is HDCP 2.2 compliant, making sure that the connection from the source is secure. With bi-directional PoC support, one power adapter at either transmitter or receiver side can power both units, so no additional power adapter is required, allowing for greater flexibility in installations. Advanced users can control bi-directional IR and RS232 pass through.
  • Specifikation
  • Downloadbare filer
